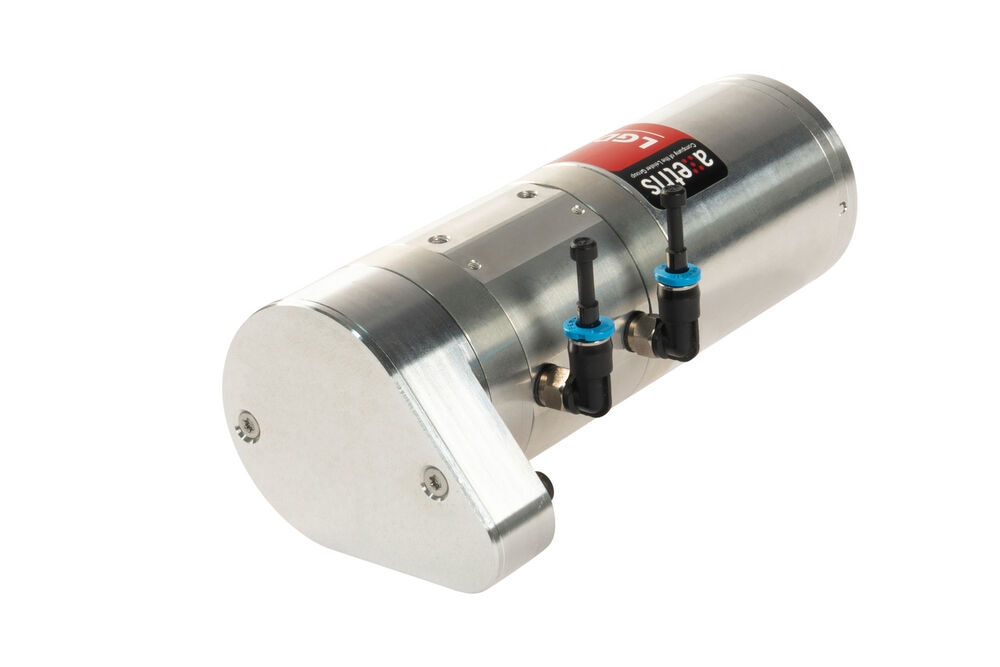

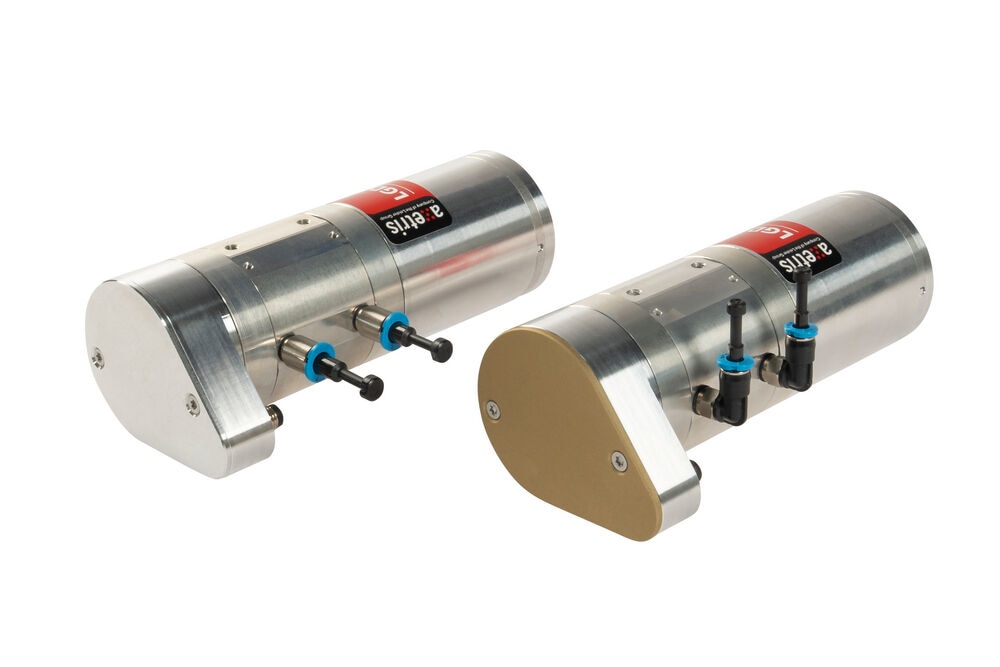

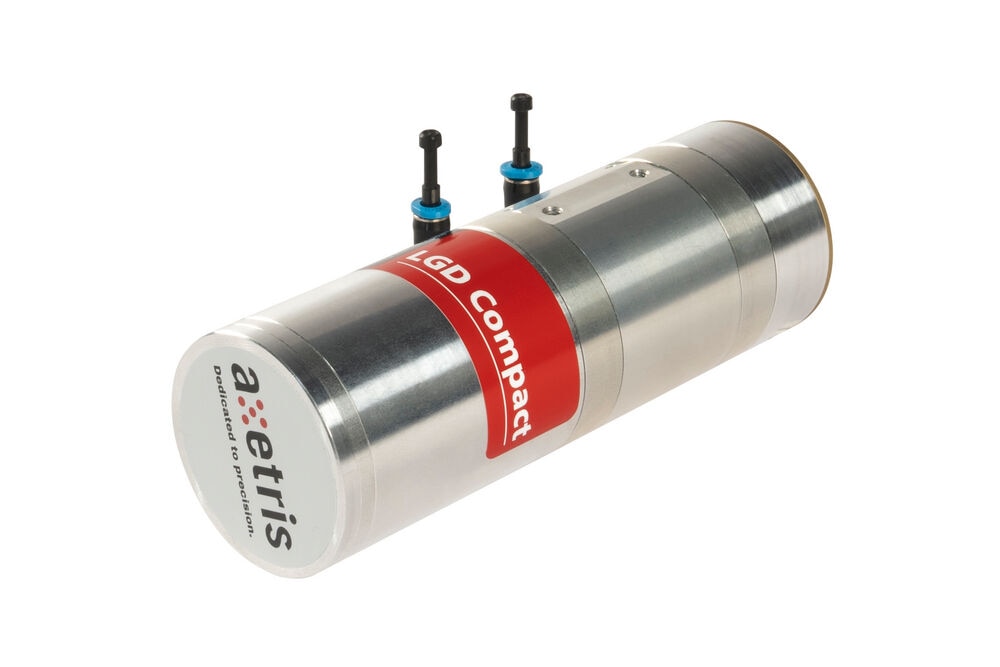

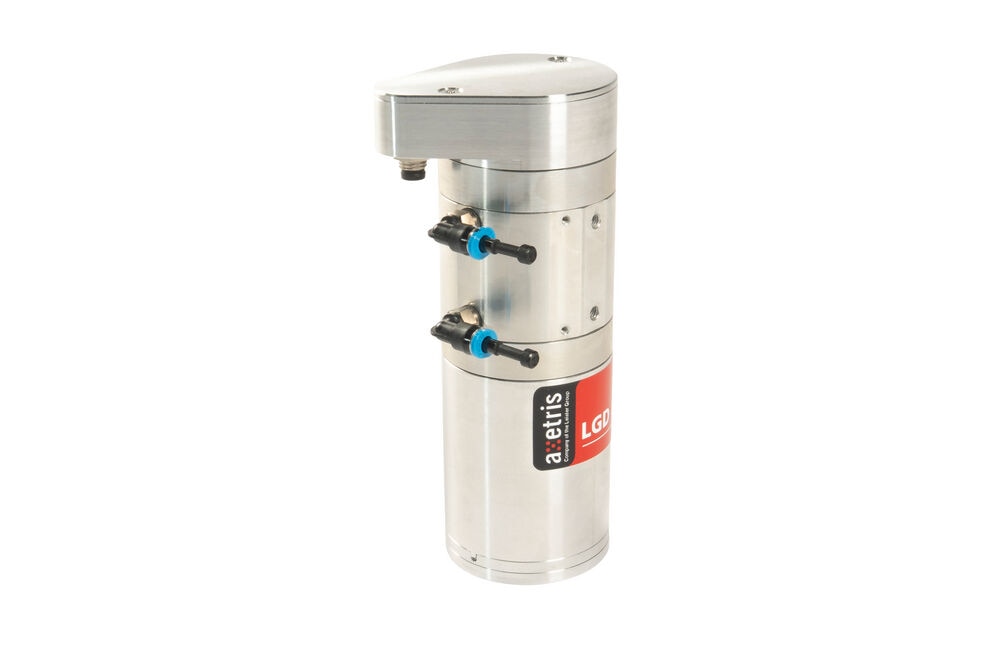

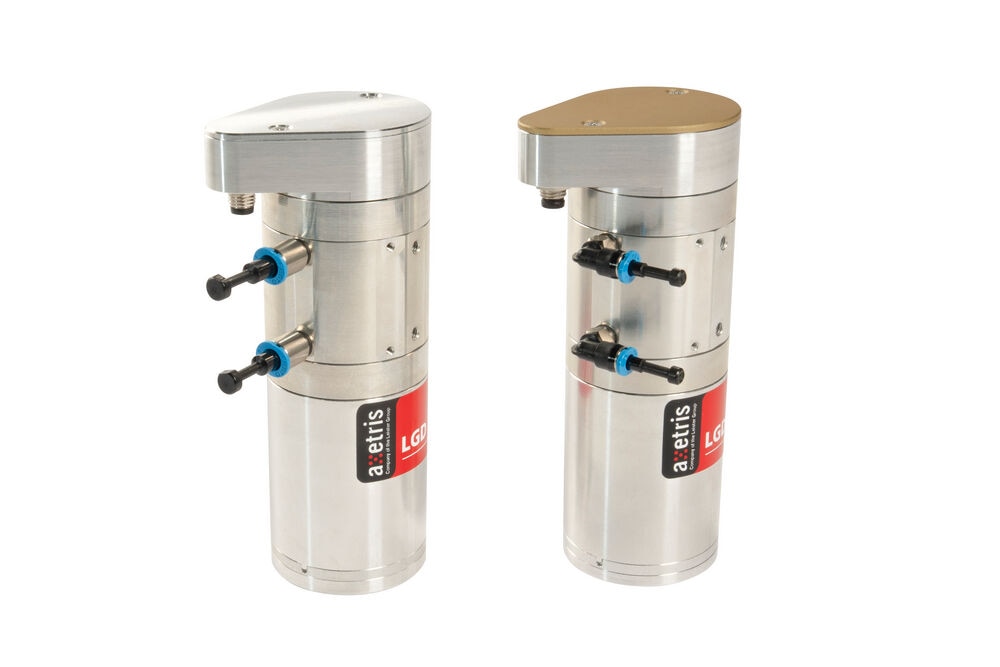

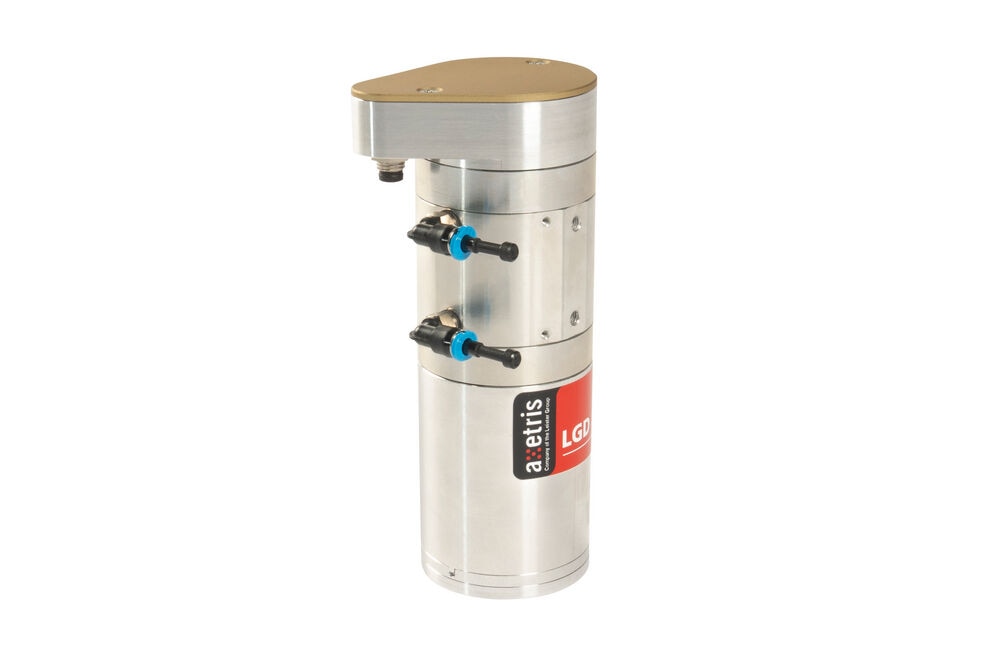

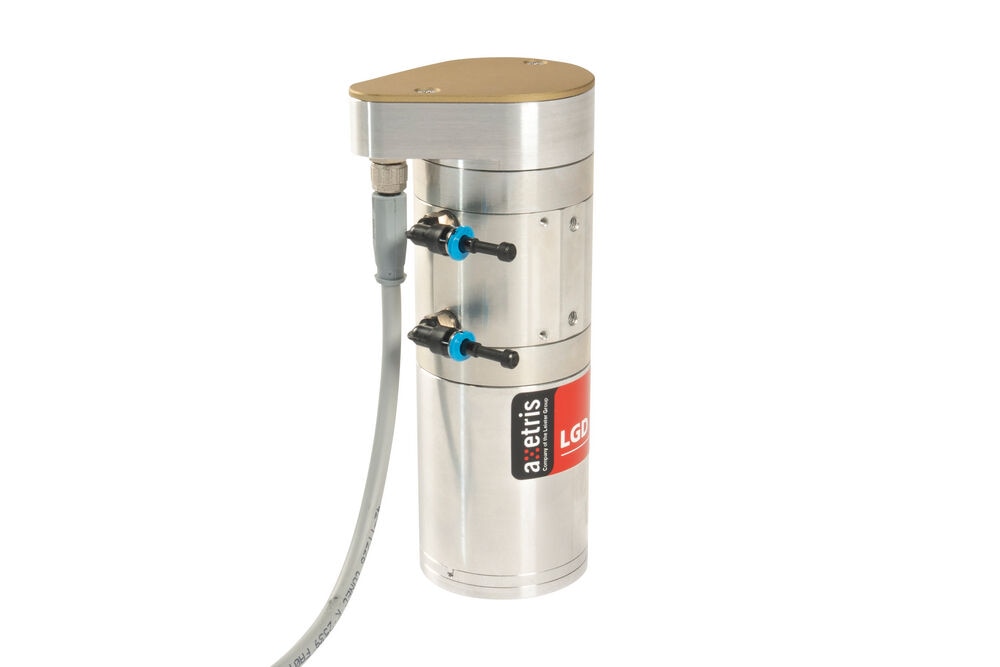

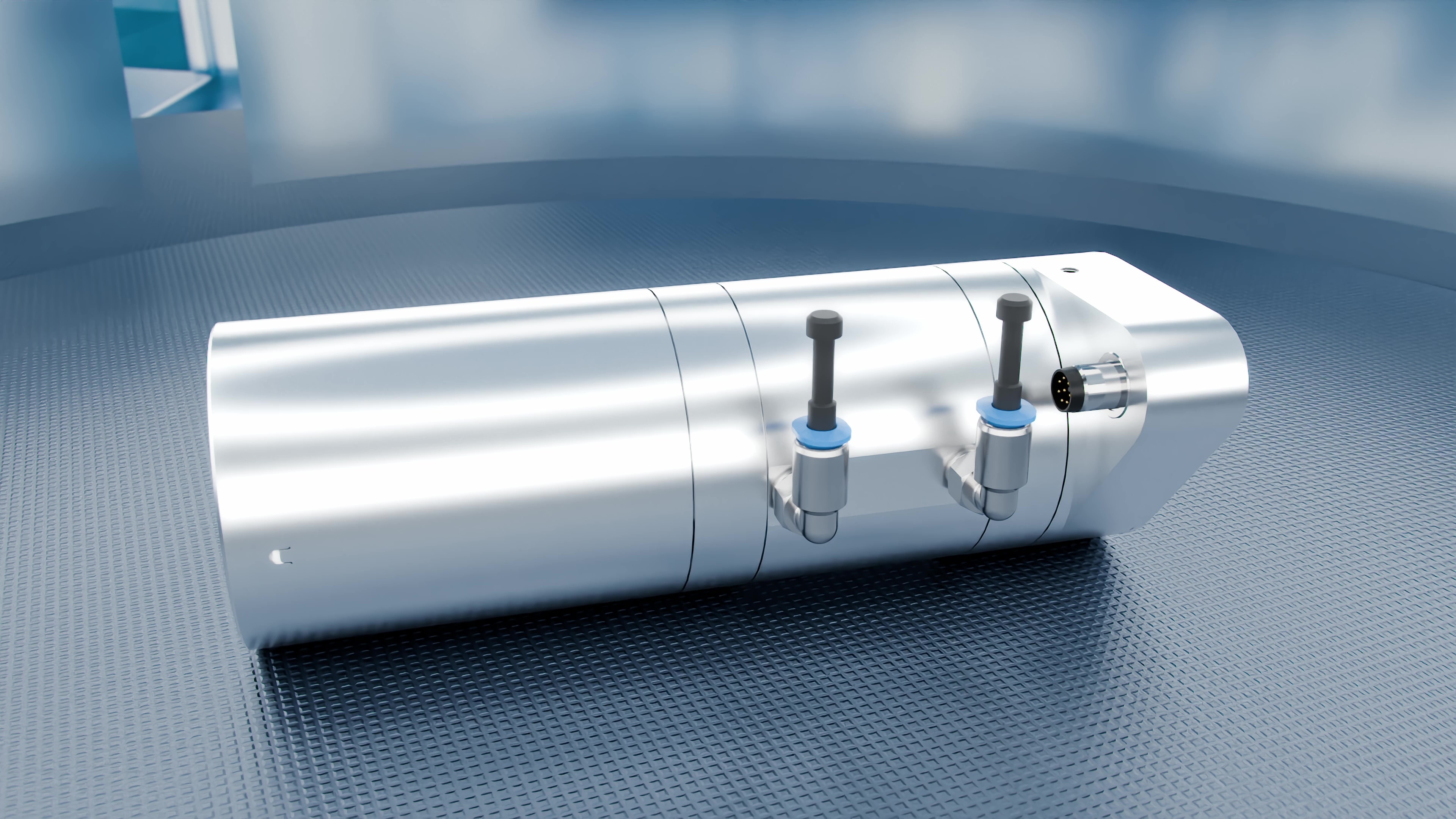

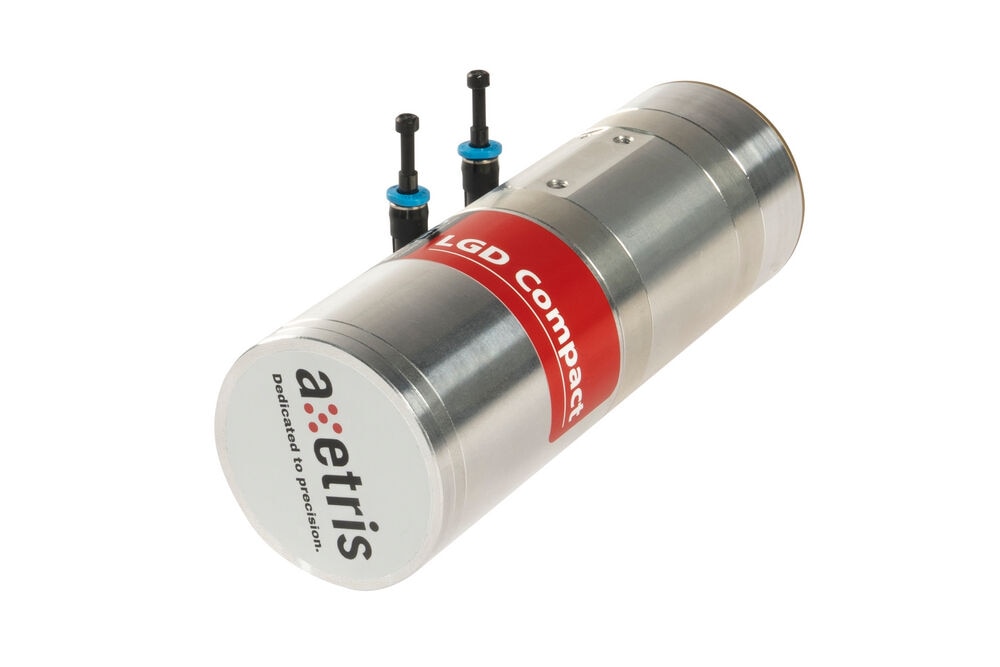

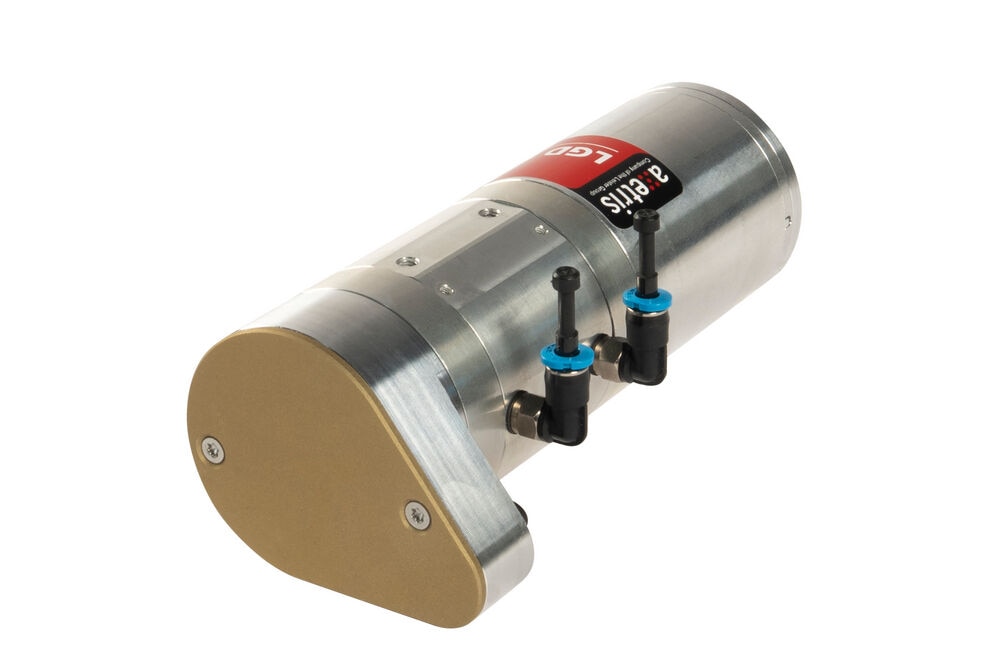

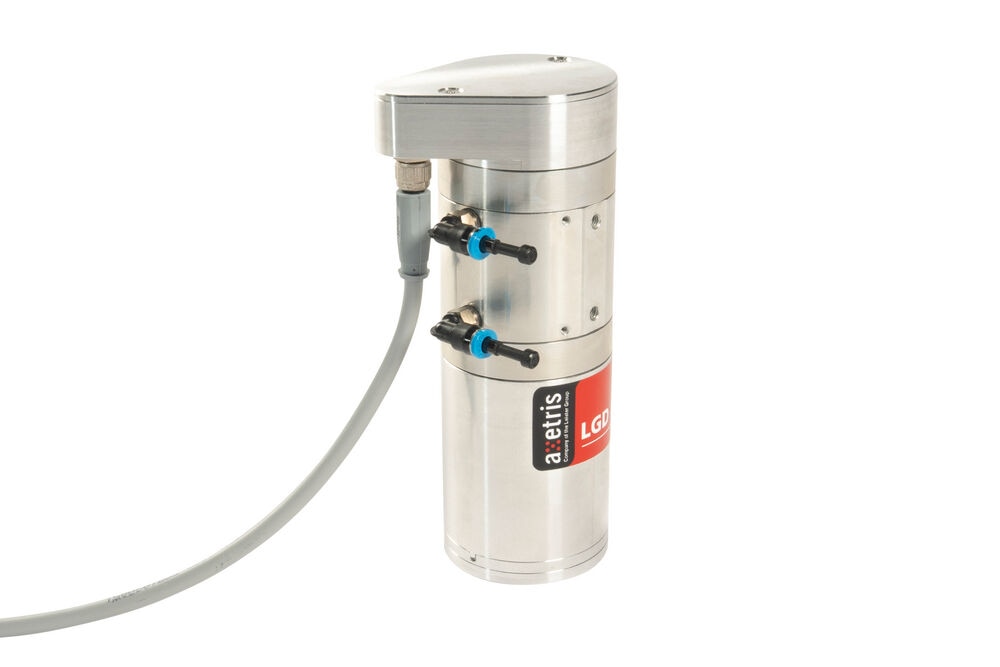

LGD Compact Ultra CH4 is a laser based methane sensor with fully integrated electronics, designed for compact leak detection systems. The sensor maintains the mechanical footprint of previous LGD Compact generations while reducing external cabling and integration effort. An optional Ultra+ variant enables improved methane detection stability at low concentration levels.
Technical Data
Metric
Imperial
Target gas
CH₄
Measurement type
Extractive
Measuring range
high range, 40'000 ppm; low range, 100 ppm
Measuring temperature range
-10 - 50 °C
Precision
< 0.8 ppm or 0.6% of reading, whichever is larger
Resolution
0.01 ppm
Response time (T90)
1.8 s @ 2 l/min
Sampling rate
2 Hz
Lower detection limit
< 0.4 ppm (< 0.1 ppm for version Plus)
Highlights
Compact integration and high performance
Integrated electronics simplify CH4 integration
Reduced cabling and improved system robustness
Stable CH4 measurement at low concentration levels
