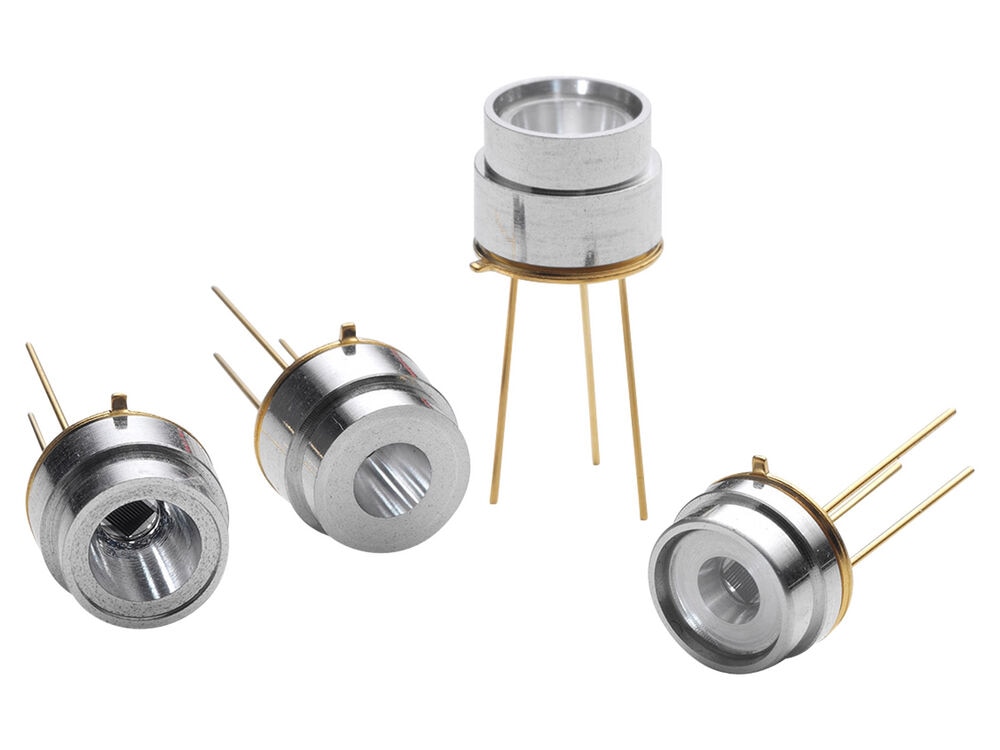

The Axetris EMIRS200 infrared source is available in customized versions. Our application specialists support you with the adaption of our tried and tested technology to your individual OEM requirements. As a result, installation-relevant specifications are met and optimal coupling of the optical signal is achieved. Customer-specific solutions are built on a broad, modular product portfolio of implemented components and adapted and extended according to individual requirements.
Technical Data
Metric
Imperial
Typical current at 460°C
75 mA
Typical voltage at 460°C
5.2 V
Package Type
TO-39
Emissivity
0.85 ε
IRS Chip
EMIRS200
Lifetime
10 a
Max. peak temperature
500 °C
Medium cold resistance
45 Ω
Medium hot resistance
72 Ω
Modulation depth at 20Hz
0.8
Modulation depth at 50Hz
0.5
Working temperature
460 °C
Highlights
Highly Efficient Modular Broadband IRS
True black body structure
Specific form-fit and collimation
Specific form-fit and collimation Optical analyzes for special requirements
